Exterior Frame for Foco 1100

Exterior frame for Foco 1100 fireplaces

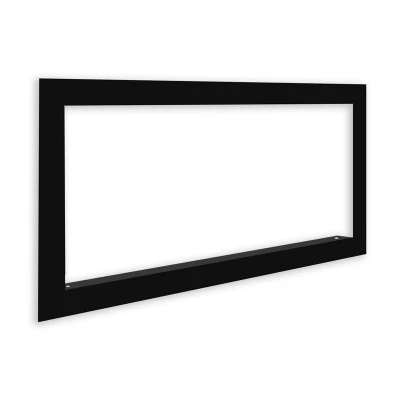

The exterior frame is mounted on the Foco 1100 frame and provides a frame around the built-in fireplace.

If you build your Foco One or Foco Two bio fireplace into an existing wall, it can be difficult to create a perfect finish around the frame. With this exterior frame, you can easily hide all imperfections.

The exterior frame is made from the same steel and with the same powder coating as the Foco insert frame. The outer frame itself has a width of 5 cm all the way around and has a thickness of 4 mm.

Installation of the Exterior Frame

Installation requires the following tools:

• Drill
• Metal Drill

Procedure:

• Remove the safety glass and glass holders from the built-in frame
• Slide the exterior frame into the built-in frame
• The mounting holes in the bottom of the outer frame and the inner frame should now fit together
• Attach the glass holders through both the exterior and the built-in frame
• At the top of the inner frame, drill two holes that match the holes in the exterior frame
• Now screw the outer frame through the holes drilled in the inner frame and also in the wall

This exterior Frame Fits the Following Foco Models

• Foco One 1100 Medium
• Foco One 1100 Medium - Remote Controlled Burner
• Foco Two 1100 Medium
• Foco Two 1100 Medium - Remote Controlled Burner
