Exterior Frame for Foco 1500

Exterior Frame for Foco 1500 Bioethanol Fireplaces

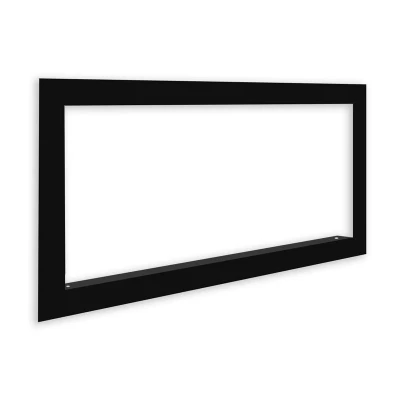

The exterior frame for Foco 1500 bioethanol fireplaces is mounted on the Foco frame and provides a frame around the installation.

When installing a Foco One, Foco Two or Foco Three bio fireplace into an existing wall, it can be difficult to create a perfect finish around the frame. With this exterior frame, you can easily hide all imperfections.

The outer frame is made of the same steel and powder coating as the Foco built-in frame. The outer frame itself is 5 cm wide all around and has a thickness of 4 mm.

Installation of the Exterior Frame

Installation requires the following tools:

• Drill
• Metal drill

Procedure:

1. Remove safety glass and glass holders from the installation frame
2. Push the outer frame into the built-in frame
3. The mounting holes at the bottom of the outer frame and the built-in frame should now fit together
4. Fasten the glass holders through both the outer frame and the built-in frame
5. In the top of the built-in frame, two holes must be drilled that match the holes in the outer frame
6. Now screw the outer frame firmly via the holes that have been drilled in the built-in frame and further up into the wall

This Exterior Frame Fits the Following Foco Models

• Foco One 1500
• Foco Two 1500
• Foco Three 1500
